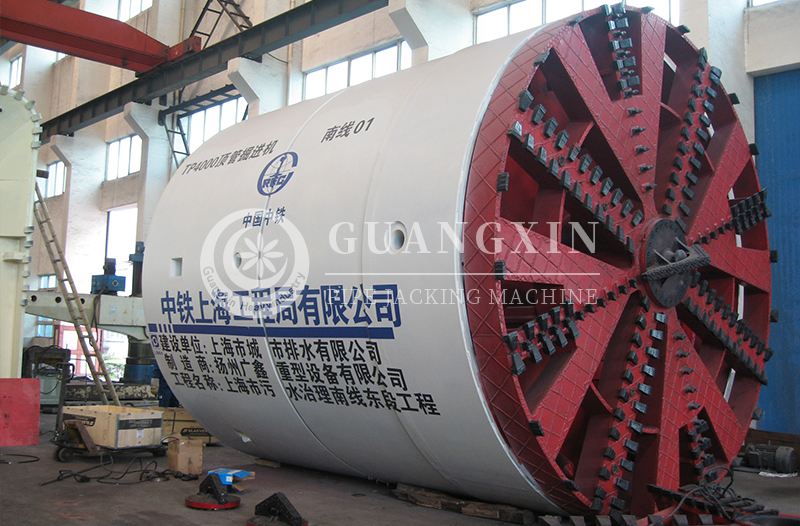

What safety measures should be followed when operating a pipe jacking machine?

2025-09-10 15:24:50

Pipe Jacking is a trenchless construction method used to install pipelines underground without the need for extensive surface excavation. While this technique offers numerous advantages, such as minimal disruption to surrounding infrastructure and reduced environmental impact, it also involves significant risks due to the complex machinery and underground working conditions. Operating a Pipe Jacking Machine requires strict adherence to safety protocols to protect workers, prevent equipment damage, and ensure the successful completion of the project. This article outlines the critical safety measures that should be followed when operating a pipe jacking machine, covering pre-operation preparations, operational procedures, worker training, and emergency preparedness.

1. Pre-Operation Safety Preparations

Before commencing pipe jacking operations, a comprehensive safety assessment and preparation phase is essential. This stage lays the foundation for a safe working environment and minimizes potential hazards during the project.

1.1 Site Assessment and Planning

A thorough site investigation is the first step in ensuring safety. This includes evaluating soil conditions, groundwater levels, and the presence of underground utilities or obstructions. Understanding the geological and environmental factors helps in selecting the appropriate pipe jacking method and equipment. Additionally, the project plan should include detailed risk assessments, identifying potential hazards such as cave-ins, equipment failure, or worker exposure to hazardous substances.

1.2 Equipment Inspection and Maintenance

The pipe jacking machine and associated equipment must undergo rigorous inspection before use. All components, including hydraulic systems, hydraulic jacks, thrust blocks, and guidance systems, should be checked for wear, damage, or malfunction. Regular maintenance schedules should be established to ensure that the machinery remains in optimal condition. Any defective parts must be repaired or replaced promptly to prevent operational failures.

1.3 Work Area Preparation

The work area should be clearly defined and secured to prevent unauthorized access. Barriers, warning signs, and lighting should be installed to alert personnel and the public to the ongoing construction activities. The ground surface above the jacking pit should be reinforced to withstand the forces exerted during the pipe jacking process, reducing the risk of structural collapse or surface subsidence.

2. Operational Safety Procedures

Once the pre-operation preparations are complete, the focus shifts to safe operational practices. These procedures are designed to minimize risks during the active phase of pipe jacking.

2.1 Proper Machine Operation

Operators must be trained to handle the pipe jacking machine proficiently. The machine should be operated at controlled speeds to avoid sudden movements that could destabilize the tunnel or damage the pipeline. Excessive thrust or jacking force can lead to mechanical failure or ground instability, while insufficient force may result in pipe misalignment. Operators should continuously monitor the machine’s performance and adjust the parameters as needed to maintain stability.

2.2 Monitoring and Control Systems

Modern pipe jacking machines are equipped with advanced monitoring systems that provide real-time data on thrust forces, jack pressures, and alignment. These systems enable operators to detect deviations from the planned trajectory or abnormal stress levels. Regular checks of the monitoring equipment ensure its accuracy and reliability. Any unusual readings should prompt an immediate investigation to prevent potential accidents.

2.3 Alignment and Guidance

Maintaining the correct alignment of the pipeline is critical to the success of the project. Pipe jacking machines often include guidance systems, such as laser or gyroscopic tools, to ensure the pipes are installed along the intended path. Operators must regularly verify the alignment and make adjustments as necessary. Misaligned pipes can lead to increased friction, equipment strain, or even structural failure.

2.4 Soil Stabilization

Depending on the soil conditions, additional measures may be required to stabilize the surrounding ground. This can include the use of bentonite slurry, grouting, or other support systems to prevent cave-ins or soil collapse. Proper soil stabilization protects both the workers and the integrity of the pipeline.

3. Worker Safety and Training

Human error is a leading cause of accidents in construction projects, making worker safety and training a top priority. All personnel involved in pipe jacking operations must be adequately trained and equipped to perform their tasks safely.

3.1 Comprehensive Training Programs

Workers should receive comprehensive training on the operation of the pipe jacking machine, safety protocols, and emergency procedures. This includes understanding the functions of the machine, recognizing potential hazards, and knowing how to respond to emergencies. Training programs should also cover the proper use of personal protective equipment (PPE) and safe work practices.

3.2 Personal Protective Equipment (PPE)

All workers must wear appropriate PPE to protect against potential hazards. This includes hard hats, safety goggles, high-visibility clothing, gloves, and steel-toed boots. In environments with airborne dust or hazardous fumes, respirators or masks may be required. Workers should also be provided with fall protection equipment if they are working at elevated heights.

3.3 Communication and Coordination

Effective communication is essential for maintaining a safe work environment. Workers should be trained to use clear signals and communication tools, such as radios or hand signals, to coordinate their activities. A designated supervisor should oversee the operations and ensure that all team members are aware of their roles and responsibilities.

3.4 Workforce Fatigue Management

Fatigue can impair judgment and reaction times, increasing the risk of accidents. Employers should implement measures to manage workforce fatigue, such as scheduling regular breaks, limiting overtime, and providing adequate rest areas. Workers should be encouraged to report any signs of fatigue or health concerns.

4. Emergency Preparedness

Despite the best safety measures, emergencies can still occur. Being prepared to respond to unforeseen events is a critical aspect of pipe jacking safety.

4.1 Emergency Response Plan

A detailed emergency response plan should be developed and communicated to all workers. This plan should outline the procedures for responding to incidents such as equipment failure, cave-ins, or medical emergencies. It should include evacuation routes, assembly points, and the contact information for emergency services.

4.2 On-Site Emergency Equipment

The work site should be equipped with essential emergency equipment, such as first aid kits, fire extinguishers, and rescue tools. These resources should be easily accessible and regularly inspected to ensure their functionality. Workers should be trained in basic first aid and rescue techniques.

4.3 Incident Reporting and Investigation

All incidents, regardless of severity, should be promptly reported and investigated. This helps identify the root causes of the incident and implement corrective actions to prevent recurrence. A culture of transparency and continuous improvement should be fostered to enhance overall safety.

5. Environmental and Community Safety

In addition to protecting workers, pipe jacking operations must also consider the safety of the surrounding environment and community. Measures should be taken to minimize noise, vibration, and disruption to nearby residents and businesses.

5.1 Noise and Vibration Control

Pipe jacking machines can generate significant noise and vibration, which may affect the surrounding area. Soundproofing measures and vibration-dampening technologies can help reduce these impacts. Operations should be scheduled to minimize disturbances during sensitive hours, such as nighttime or early morning.

5.2 Groundwater Protection

In projects involving waterlogged or unstable soil, measures should be taken to prevent groundwater contamination. This includes the proper disposal of drilling fluids and the use of environmentally friendly materials. Monitoring wells can be installed to track groundwater quality during the project.

5.3 Community Engagement

Engaging with the local community and stakeholders helps build trust and address concerns. Regular updates on the project’s progress and safety measures can reassure the public and demonstrate the commitment to minimizing disruptions.

Conclusion

Operating a pipe jacking machine is a complex and potentially hazardous task that requires a proactive approach to safety. By implementing comprehensive pre-operation preparations, adhering to strict operational procedures, prioritizing worker training, and preparing for emergencies, project teams can significantly reduce the risks associated with pipe jacking. Safety is not only a legal and ethical responsibility but also a critical factor in ensuring the success and efficiency of the project. Through vigilance, proper planning, and a commitment to continuous improvement, pipe jacking operations can be conducted safely and effectively, benefiting both the construction industry and the communities it serves.
