What are the main components of a rock pipe jacking machine?

2026-03-08 14:42:05

Rock Pipe Jacking, a specialized trenchless technology, has revolutionized underground infrastructure development by allowing the installation of pipelines through hard geological formations—such as granite, basalt, or compacted sandstone—without extensive surface excavation. Unlike traditional open-cut methods, this technique minimizes environmental disruption and ensures structural integrity in challenging terrains. At the heart of this process lies the rock Pipe Jacking Machine (RPJM), a sophisticated piece of engineering that integrates mechanical, hydraulic, and control systems to deliver controlled force, precision navigation, and resilience against abrasive rock. Understanding its core components reveals how it overcomes the unique demands of rock excavation, making it indispensable for modern urban and industrial projects.

1. The Main Driving Unit: The Engine of Propulsion

The primary function of an RPJM is to generate the immense thrust required to push pipes through dense rock. This task falls to the main driving unit, often referred to as the propulsion system. Comprising high-torque hydraulic cylinders, a power pack, and a load-bearing frame, this unit is engineered to convert hydraulic energy into linear force with exceptional consistency.

Hydraulic cylinders are the workhorses here, typically arranged symmetrically around the machine’s axis to distribute thrust evenly across the pipe string. Their design prioritizes durability; piston rods are often coated with wear-resistant alloys, and seals are crafted from materials like polyurethane or fluorocarbon rubber to withstand high pressures and prevent fluid leakage. The number and size of cylinders vary with project scale—larger machines may employ dozens of cylinders, each capable of exerting hundreds of tons of force, enabling total thrust capacities exceeding 10,000 kN.

Supporting these cylinders is the power pack, a self-contained system housing hydraulic pumps, motors, filters, and reservoirs. Modern RPJMs use variable-displacement pumps to adjust flow rates dynamically, ensuring optimal cylinder response during acceleration, deceleration, or directional changes. Advanced filtration systems within the power pack remove contaminants from hydraulic fluid, critical for maintaining component longevity in abrasive environments. The entire driving unit is mounted on a robust steel frame, reinforced to resist deformation under extreme loads, ensuring alignment between the machine and the pipe string throughout the jacking process.

2. The Cutting Head: Conquering Hard Rock with Adaptive Force

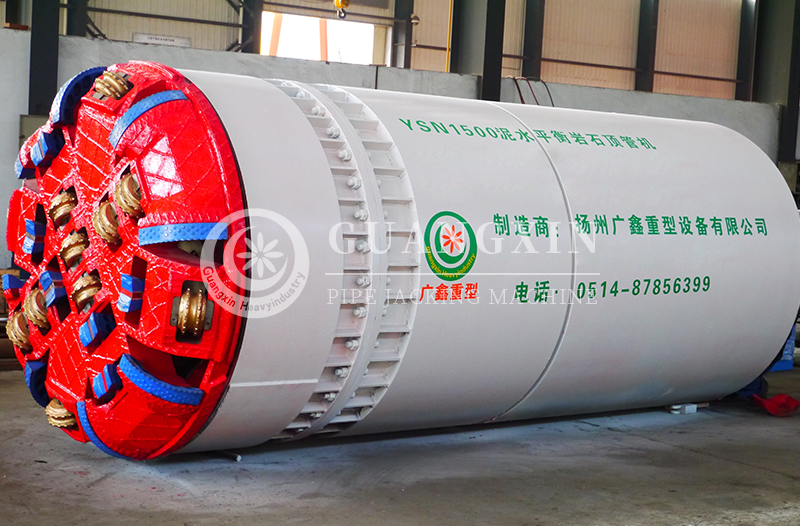

At the forefront of the RPJM is the cutting head, a specialized tool designed to fragment and remove rock while minimizing resistance. Unlike soft-soil jacking machines that rely on simple blades or buckets, rock-specific cutting heads integrate multiple technologies to tackle high compressive strength and abrasiveness.

The most common configuration features disc cutters—circular, tungsten carbide-tipped tools mounted on a rotating drum. These cutters apply point loading to the rock surface, inducing tensile fractures that propagate under repeated stress, effectively "spalling" the material into manageable fragments. For harder formations, roller cones or button bits may supplement disc cutters, using rotary drilling principles to crush rock incrementally. Some advanced models incorporate abrasive water jets or high-frequency vibration mechanisms alongside mechanical cutters, softening the rock matrix or loosening fragmented pieces to reduce cutting forces.

Equally critical is the muck removal system integrated into the cutting head. As rock is fractured, a spiral auger or scraper conveyor channels debris into a collection chamber, preventing clogging and maintaining visibility for operators. In particularly abrasive conditions, replaceable wear plates line the cutting head’s interior, shielding structural components from erosion and extending maintenance intervals. The cutting head’s rotational speed and penetration depth are often adjustable, allowing operators to fine-tune performance based on real-time rock hardness data from onboard sensors.

3. The Guidance System: Navigating Subterranean Complexity

Precision is paramount in pipe jacking, especially when aligning new pipelines with existing infrastructure or avoiding underground utilities. The guidance system of an RPJM combines mechanical, optical, and electronic technologies to ensure accurate trajectory control.

At its core is the laser target assembly, mounted at the rear of the machine. A fixed laser transmitter emits a beam toward a movable target sensor on the cutting head. By measuring deviations between the laser’s path and the sensor’s position, the system calculates horizontal and vertical misalignments in real time. This data is relayed to a control cabin, where operators adjust the machine’s orientation via steering cylinders or by modulating thrust on specific sides of the pipe string.

For enhanced accuracy, many RPJMs integrate inclinometers and gyroscopes to monitor tilt angles and rotation, compensating for gravitational effects or uneven ground pressure. Advanced models also feature GPS-assisted positioning (where satellite signals penetrate shallow depths) or ground-penetrating radar (GPR) to map subsurface obstacles, enabling proactive adjustments to the jacking path. Redundant sensors and fail-safe algorithms ensure reliability, even in low-visibility conditions, preventing costly deviations that could compromise pipeline functionality.

4. The Hydraulic Control System: Orchestrating Seamless Operation

Behind the scenes, the hydraulic control system acts as the nervous system of the RPJM, coordinating the interaction of all mechanical components. It regulates fluid flow, pressure, and direction to synchronize the driving unit, cutting head, guidance system, and auxiliary functions like pipe handling.

A central control valve manifold directs hydraulic oil to specific circuits—for example, isolating thrust cylinders from steering actuators to prevent cross-interference. Proportional valves, which adjust flow rates proportionally to input signals, enable smooth acceleration and deceleration, critical for avoiding sudden jolts that could damage pipes or derail the machine. Pressure sensors embedded throughout the system monitor load distribution, alerting operators to imbalances (e.g., excessive force on one side) that might indicate rock irregularities or equipment wear.

Modern RPJMs often include automated control interfaces with touchscreen displays, allowing operators to pre-program jacking parameters (thrust limits, cutting speeds, steering corrections) or switch to manual override when needed. Integration with remote monitoring systems enables off-site engineers to analyze performance metrics, predict maintenance needs, and optimize operations in real time, reducing downtime and enhancing safety.

5. The Pipe Handling System: Ensuring Continuous Progress

Efficient pipe installation relies on the pipe handling system, which manages the sequential placement of pipeline segments behind the jacking machine. This system typically includes a gripper arm or pusher carriage that aligns new pipes with the trailing end of the installed string, a centering mechanism to ensure precise alignment, and a locking device to secure pipes in place before jacking resumes.

In larger projects, automated pipe handling systems use robotic arms or conveyor belts to transport segments from storage areas to the jacking zone, minimizing manual labor and reducing the risk of human error. Sensors verify pipe dimensions and alignment before engagement, preventing mismatches that could cause stress concentrations or joint failures. The system’s synchronization with the driving unit ensures seamless transitions between pipe segments, maintaining continuous forward progress without halting the entire operation.

6. The Support Structures: Safeguarding Stability and Durability

No RPJM operates in isolation; it depends on support structures to anchor it securely and protect critical components. The thrust wall or reaction block, constructed from reinforced concrete or steel, serves as the anchor point against which the driving unit exerts force. Its design must account for soil mechanics and jacking forces, distributing load to prevent settlement or collapse.

Additionally, sealing systems protect internal components from water ingress and dust. Rotary joints between stationary and rotating parts (e.g., between the cutting head and main body) use labyrinth seals or inflatable bladders to maintain hydraulic integrity. Lubrication systems, often automated, deliver grease or oil to high-wear areas like cylinder pins and cutter bearings, reducing friction and extending service life.

Conclusion: Synergy of Components for Underground Mastery

The Rock Pipe Jacking Machine is a testament to interdisciplinary engineering, where the synergy of its main components—driving units, cutting heads, guidance systems, hydraulic controls, pipe handlers, and support structures—enables the conquest of some of the most unforgiving subterranean environments. Each element is meticulously designed to address the unique challenges of rock excavation: immense thrust, abrasive wear, precise navigation, and operational continuity. As urbanization drives demand for efficient underground infrastructure, the evolution of RPJM components will continue to push the boundaries of what is possible, ensuring safer, faster, and more sustainable construction beneath our cities.
